Discover how Constructor supplied CR18 pallet racking engineered to meet System Integrator requirements in an automated warehouse project in Asia.

Automation Ready Pallet Racking Supporting a System Integrator–Led Warehouse Project

The customer was developing a new automated warehouse as part of a broader logistics modernisation program, led by a specialist System Integrator responsible for automation design, controls and material handling equipment.

Constructor was selected to supply an automation‑ready pallet racking structure, engineered to meet the dimensional, load and interface requirements defined by the System Integrator



Country: Negeri Sembilan, Malaysia
Industry: Food & Beverage (F\&B)

The Challenge

Automated warehouse projects require close coordination between structural storage systems and automated handling technologies.

In this case, the System Integrator defined precise requirements related to:

  • Rack geometry and tolerances
  • Load performance under dynamic conditions
  • Compatibility with cranes and automated handling equipment
  • Long‑term operational stability

The racking solution needed to meet these requirements while maximising storage density and ensuring reliable day‑to‑day operation.

The Solution

Constructor supplied its CR18 pallet racking system, engineered specifically to support the needs of the System Integrator‑led automation concept.

The CR18 solution was designed to:

  • Satisfy the System Integrator’s interface and tolerance requirements
  • Provide a stable structural backbone for automated pallet handling
  • Support high storage density within the available footprint

Working from specifications provided by the System Integrator, the racking system was configured to integrate seamlessly into the overall automated warehouse layout.

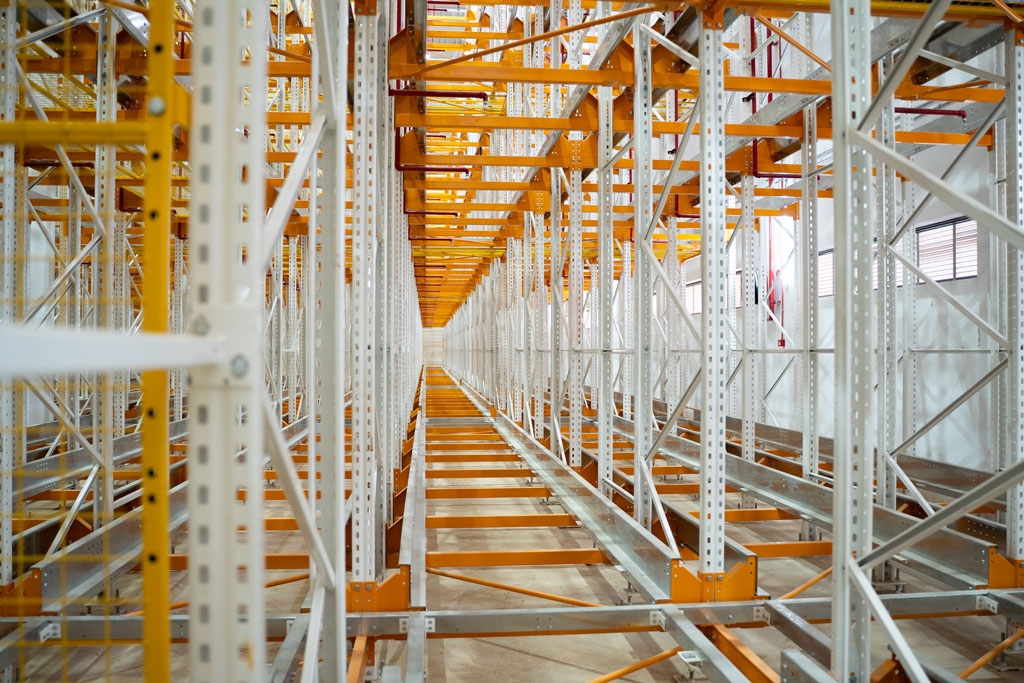

The Solution

The Result

The completed warehouse delivers a high‑performance automated storage environment, combining advanced automation technology with a robust, precision‑engineered racking structure.

Key outcomes include:

  • Reliable interaction between racking and automated handling equipment
  • Optimised storage density
  • A future‑ready warehouse platform designed for long‑term operational efficiency

The project demonstrates how automation‑ready racking systems, when designed to meet System Integrator requirements, play a critical role in successful automated warehouse projects.

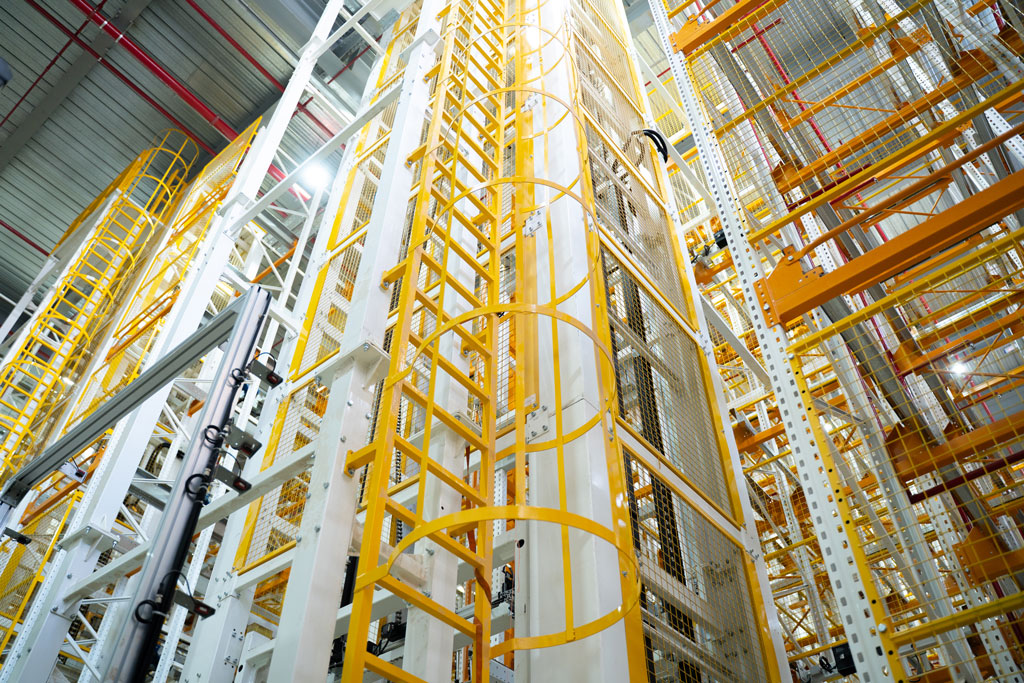

The Result

Constructor’s scope focused on the engineering, manufacture and supply of the pallet racking structure, in line with the requirements set by the System Integrator.

Why Shuttle

Why choose an automation‑ready shuttle storage concept

Close technical coordination ensured that the CR18 racking solution aligned fully with the automated handling systems supplied and commissioned by the System Integrator, enabling smooth installation and commissioning of the overall warehouse solution. The completed warehouse delivers a high‑performance automated storage environment, combining advanced automation technology with a robust, precision‑engineered racking structure.

The project demonstrates how automation‑ready racking systems, when designed to meet System Integrator requirements, play a critical role in successful automated warehouse projects.

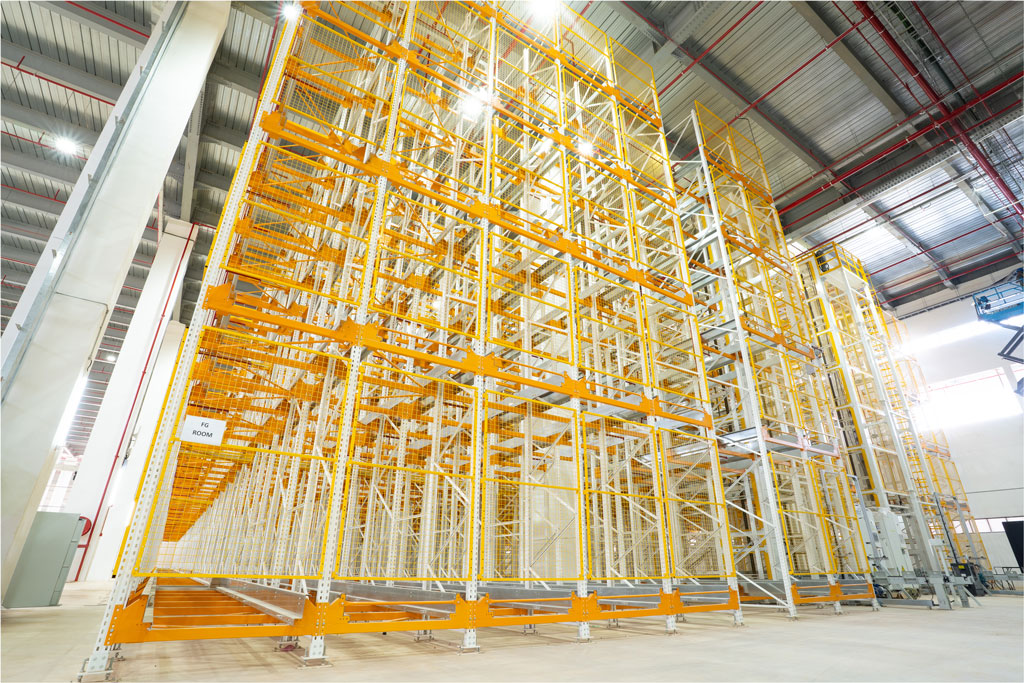

Media image

System Integrator Alignment

CR18 racking engineered to meet System Integrator specifications and interface requirements

Automation‑Ready Interaction

Precision racking design ensures reliable interaction with automated handling equipment

Optimised Storage Density

High‑density racking maximises storage capacity within the available warehouse footprint

Future‑Ready Platform

Robust racking structure designed for long‑term efficiency and scalable automation upgrades
